Twin Wet Belt Grinder Company - Chennai Metco. Model - BAINLINE Electrical input - 415V ± 10% Serial number - 7119 Frequency - 50/60 Hz Phase - 3-Phase Weight - 90 kg Full load current - 2.2 amps Input braker rating - 6 amps
Low Speed Cutter Manufacturer - Chennai Metco. Model name - BAINCUT Model No - LSS003 Serial No - 6989 Voltage - 230V±10% Frequency - 50/60 Hz Phase - Single Phase Full load current - 6 A
Hot Mounting Machine Manufacturer - Chennai Metco. Model name - BAINMOUNT Working temperature - Up to 200 ᵒC - Water cooled
Optical Microscope Company - Chennai Metco. Model - METSCOPE-1 Type - Inverted Mode of Operation - Bright Field Magnification - 1000x

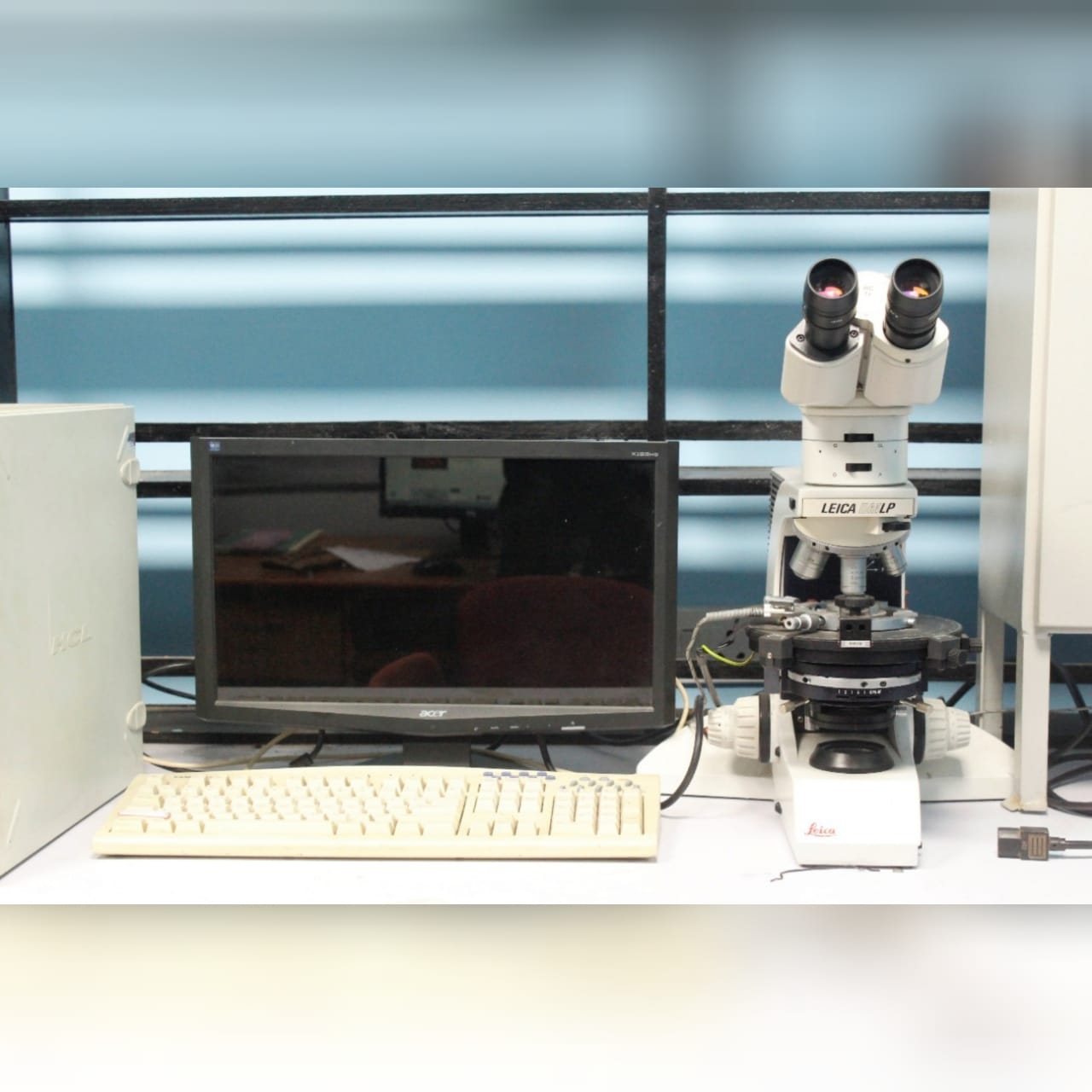

Optical Microscope with heating stage Company name - Leica Microscope type - Transmission Magnification - upto 1000X Heating - upto 300ᵒC
Scratch Tester Company - DUCOM Model - TR-101-IAS Load - 0 to 20 N Loading rate - 0 to 2 N/sec Stroke length - 50 mm Speed - 0 to 10 mm/s Sample size (L x W x T maximum) - 60 x 60 x 10 Indenter - Diamond indenter Rockwell C, with tip radius R200 micrometer - Constant and Ramp loading
Computerized Vicker’s Microhardness Tester Manufacturer - Omnitech Model name - MHT- Smart Load range - 10 gms to 1000gms Dwell time - 5 – 99 sec Microscope Magnification - 100 x, 400 x - Automatic loading and releasing
Computerized Vicker’s Macrohardness Tester Company name - Vertex Model number - VM-50 Testing Loads - 1, 5, 10, 20, 30, 50 kgf Dwell time - 0.30 ± 2 sec Indenter - Diamond Pyramid
Universal Testing Machine (UTM) Company name - Zwick/Roell Model number - Z050 Maximum load capacity - 50 kN with detachable 2.5 kN load cell Grips and platen - 3-point bend testing grip; tensile grip; compression platen Attachment - DIC
Micro-UTM Company - Metatech Industries Model - MUTM-V Heating - upto 400ᵒC Load Capacity - upto 500 Kg
Field Emission Scanning Electron Microscope (FE-SEM) Company name - Zeiss Model number - Gemini 500 Acceleration voltage - 0.02-30kV Magnification - 20 times to 2,000,000 times resolution - 0.5nm at 15kV, 0.9 nm at 1kV, 1.0 nm at 500V Detectors - In-lens SE; In-lens BSE; EDS
Scanning Electron Microscope (SEM) Company name - Zeiss Model number - EVO 60 Resolution - 50 nm Filament - Tungsten Detectors - SE; BSE; EDS; WDS; EBSD
X-ray Diffractometer Manufacturer name: - Panalytical Model name - Empyrean Facility: - Phase identification, stress, texture, high temperature, GIXRD, Thin film
Muffle Furnace Company - Ants Ceramics Max working temperature - 1200 ᵒC Continuous working temperature - 1100 ᵒC Rate of heating - Upto 10ᵒC Control Zone - single
Tube Furnace - 1200ᵒC Horizontal single zone tube furnace Company - Ants ceramics Pvt. Limited Operating Temperature - Upto 1050ᵒC ATM - Air Cooling - Fan
Microwave Furnace Company - Synotherm Model - HAMiLab-M1500 Max operating temp - 1600ᵒC ATM - Air Cooling - Fan + Water
Vacuum Arc Melting Furnace Company name - Vacuum Technologies PVT. LTD, Bangalore Temperature - upto 2800ᵒC Purging gas - Argon Maximum bead size - 2cm diameter
Glass Melting Furnace - 1700ᵒC raising hearth furnace Company - Ants ceramics Pvt. Limited Max operating temp - 1600ᵒC ATM - Air Cooling - Fan
Planetary Ball Mill Model no - Pulverisette 6 classic line Manufacturer - Fritsch GmbH Rotational speed - 650 rpm Max feeding size - 10 mm (approx.) Max feeding amount - 225 ml Dry grinding - up to d50 < 20 micron Wet grinding - up to d50 < 1 micron
Table-top Hydraulic Press Model no - 3889_4NE0000 Serial no - 140160 Manufacturer - CARVER Mode - Automatic Compression force - 15
Mechanical convection oven Manufacturer - S.D. Instruments and Equipments, Kolkata Max. temperature - ~200ᵒC
Precision Impedance Analyzer Manufacturer - Agilent Technologies Japan, Ltd. Model No - 4294A Frequency - 40 Hz-110 MHz Resolution - 1 mHz
Refractometer Manufacturer - Bellingham and Stanley Limited Model No - 970 Operating range - 0 to 40ᵒC Measuring low limit - 0 or 10 ºC below ambient (whichever greater) Measuring upper limit - 80°C Stability - ±0.05 Sensor Accuracy - ±0.03 Refractive index range - 1.30 to 1.70 Frequency - 50-60 Hz Max current - 2 A
